The purpose of this article is to explain the Curve Data Settings in the Properties Menu.

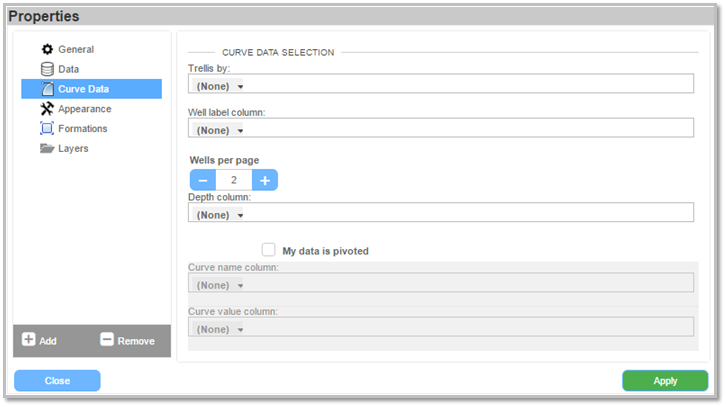

To access the Properties menu:

    1. Click the gear icon on the Well Log visualization.

    2. Click "Curve Data" under Data.

Curve Data Selection

  • Trellis by - Choose a column group to trellis by

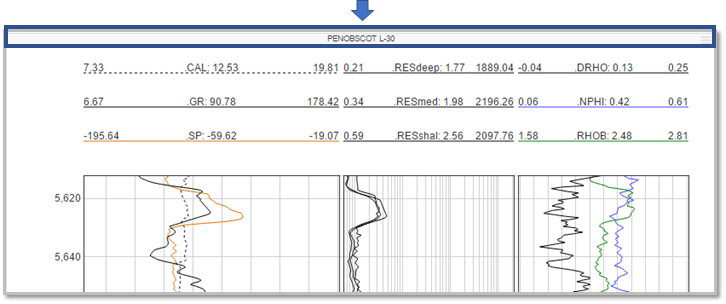

  • Well Label Column - These are the label titles on the RAI Well log Visualization.

  • Wells per Page - Limit the number of wells per page.
  • Depth Column - Depth Column from the data table.

if Data is pivoted

  • Check the box "My data is pivoted"
    • Curve Name Column - Choose the curve column name.
    • Curve Value Column - Choose the curve value column.

* Click Apply to save changes and Close.
