The purpose of this article is to explain Extract Seismic Along Path

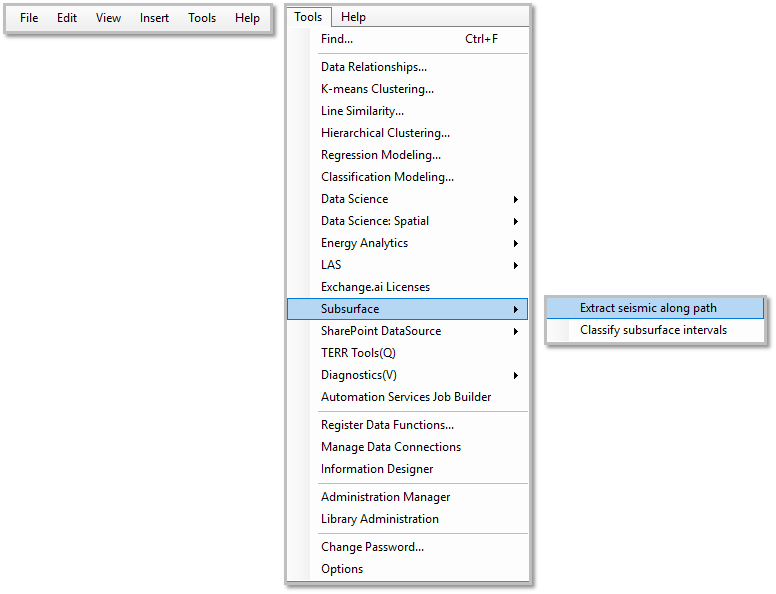

To access Extract Seismic Along Path:

    1. Click the "Tools", Located on the top bar.

    2. Scroll down to "Subsurface"

    3. Click "Extract Seismic Along Path"


Requirements

Data Tables required

  • Seismic
  • Horizons (optional)
  • Path
  • Interval

Value required

  • X,Y,Z Column Values (main value required)

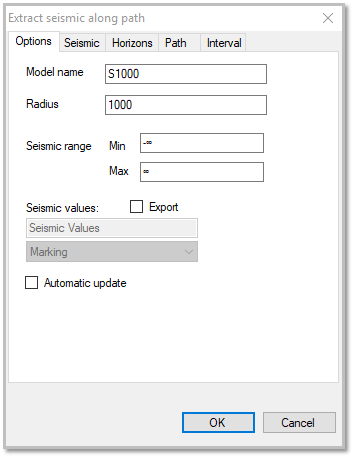

Option Menu

  • Model name
  • Radius - radius value
  • Seismic range - set the min(-∞) and max(∞) range.
  • Seismic value
    • Choose to export the Seismic values (Marked)
    • Toggle to automatic updates - with export

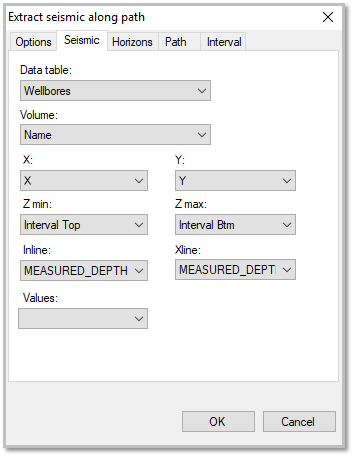

Seismic Menu

  • Data table - Choose the seismic data table
  • Volume - Choose the column from the data table that identifies the volume
  • For the options X, Y, Zmin, Zmax, Inline, Xline and Value
    • Choose the columns from the data table that matches those criteria.

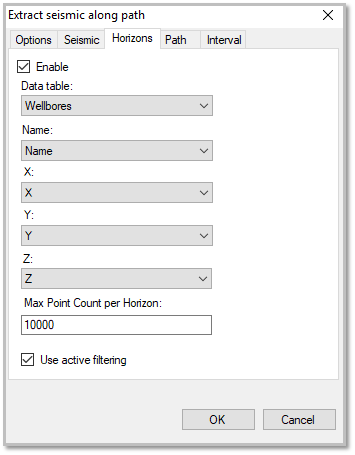

Horizons

There is an option to choose to enable or disable the horizons.

  • Data table - Choose the horizons data table
  • Name - Column name identifier for each horizon
  • Choose the Columns values for each X, Y, Z
  • Max Point Count per Horizon - in this option you can set the max value per each horizon.
  • Enable or Disable active filtering

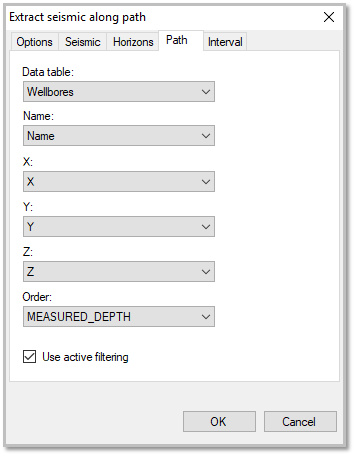

Path Menu

  • Data Table - Choose the Path data table
  • Name - Column name identifier for each path
  • For X, Y, Z, Order - match the columns from the path data table
  • Enable or disable active filtering

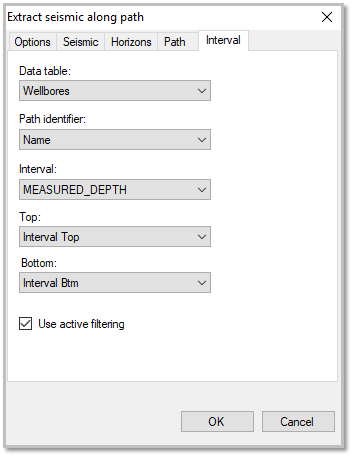

Interval Menu

  • Data table - Choose the Interval data table
  • Path Identifier - Choose the column for the path
  • For Interval, Top, Bottom - match the columns from the interval data table
  • Enable or Disable active filtering.

After configuring each Extract Seismic Along Path menu options click "OK"

For additional information on 3D Subsurface documentation, click here
