The purpose of this article is to explain the options under the DCA Wrangler View menu.





View Options Menu


After running the Decline you automatically get one visualization per well showing Oil, Gas, GOR, Yield, and forecast streams. Then the user can customize what models, streams, type curve groups and type curves streams to show by using the View button.



IMPORTANT NOTE: Remember to be aware of the Mode you are using. For Multiwell, you will only see the Model and Streams menus but for Type Curve the menu will contain Curves and Groups as well.






OptionDescription

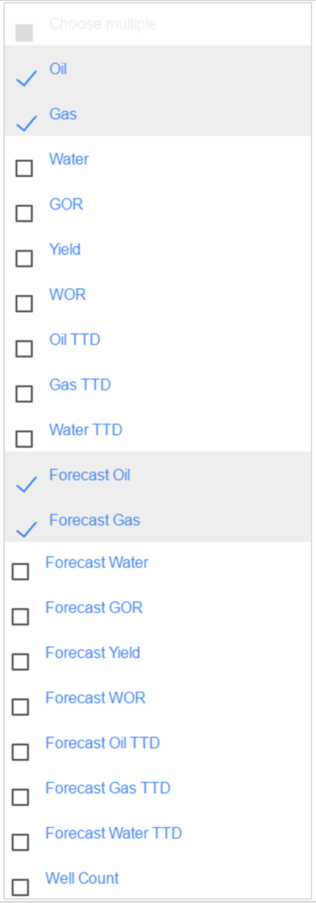

Streams                                           The Streams dropdown allow a user to select specific streams to view. These streams are duplicated for each model.
Selecting the down arrow will allow the user to select the desired streams to view.


Available from both Autocast and Type Curve modes.

IMPORTANT NOTE: Well Count is only available in Type Curve mode.

ModelThe Model dropdown contains available models to view for the current well(s). These models are populated based on your current marking and the models that are available. Previously saved models can be accessed via Sync on the DCA Wrangler toolbar.


Selecting the down arrow will allow the user to select the desired model to view.

Available from both Autocast and Type Curve modes

Auto Zoom (months)Auto Zoom will adjust the DCA Wrangler plot x-axis to the specified time period. This time is entered as months.

After all view options are selected, Save will save the the configuration and exit the menu. Cancel will exit the menu while reverting all changes.

Available from both Autocast and Type Curve modes

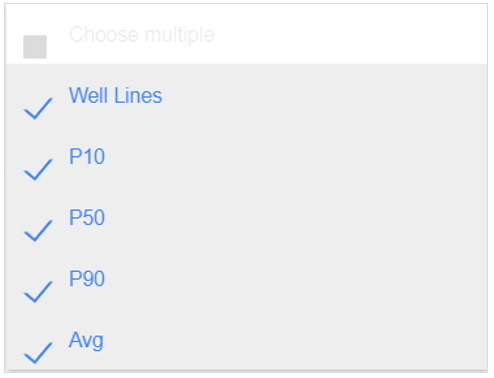

CurvesThe Curves dropdown contains Well Lines, P10, P50, P90, and Avg curve options for the DCA Wrangler plot.

Selecting the down arrow will allow the user to select the desired curves to view.

Available only from Type Curve mode

GroupsThe Groups dropdown contains the names of the groups of wells you used for type curve analysis. Selecting the down arrow will allow the user to select the desired groups to view. The group selection is driven from a column in the data table. This column is specified in the DCA Wangler's Properties Menu.

Available only from Type Curve mode

Max Y-Axis Value
(sets Min Y-axis to 0.01)
Setting a Max Y-axis Value will lock the y-axis to a maximum value you specify and minimum to 0.01.

Available for Single well, Multi Well, and Type Curve.
Legend DetailThe Legend Detail dropdown will allow you to toggle between various legend grouping options. If you select Toggle by Curve, you can toggle curves on and off by clicking the curve name in the legend. This will work for all legend detail options. In any mode - Legend itself can be toggled on and off just pressing "L" on your keyboard.



Available only from Type Curve mode

Curve EditorCurve Editor selection will turn on or off the interactive control points on the DCA Wrangler's plot.
